Configure Your AI Agent

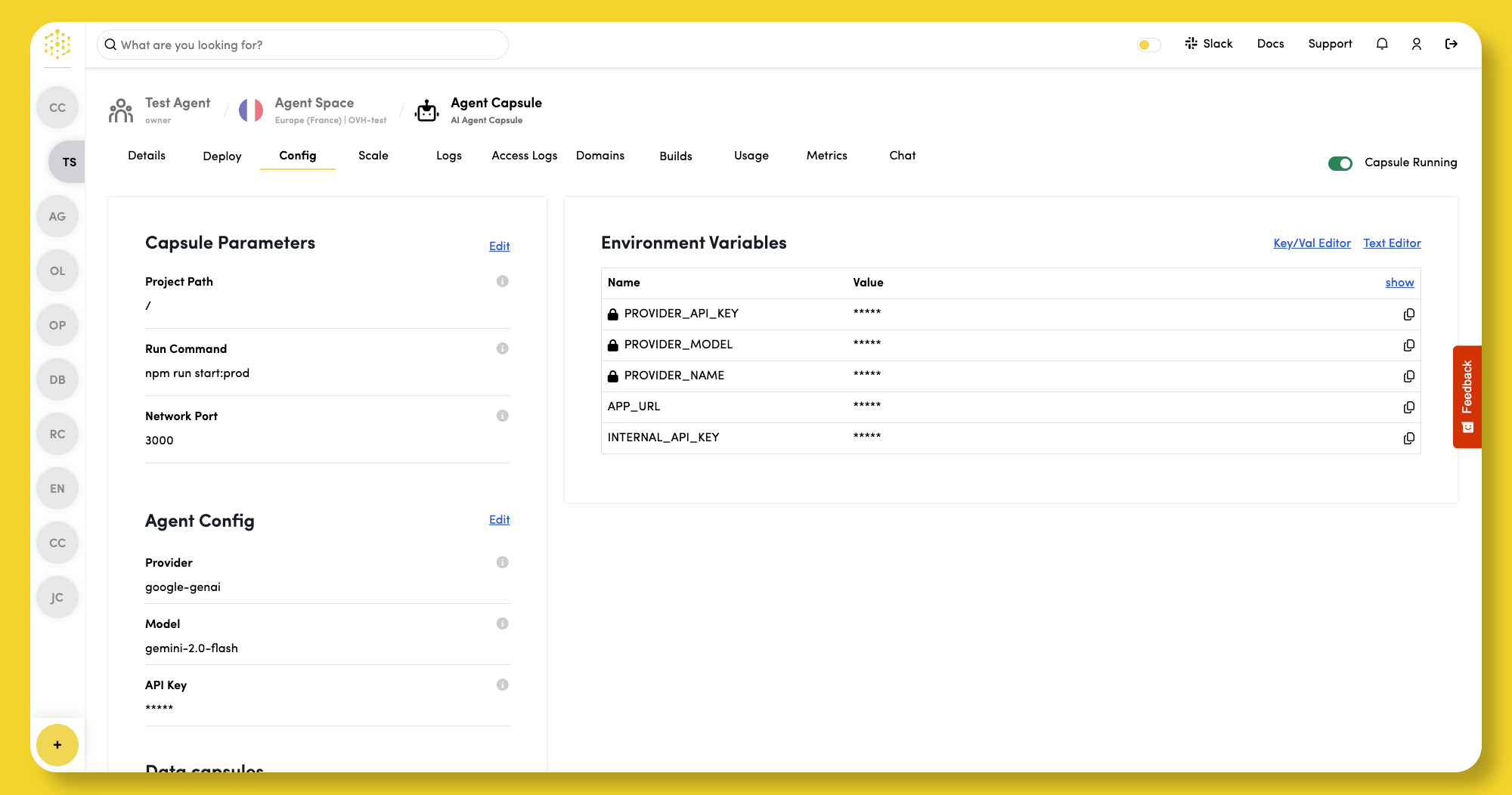

Configure an Agent Capsule in the Config tab.

Set Capsule Parameters

Click Edit in the Capsule Parameters section to set the Capsule's project path, network port, and run command.

Project Path

The Project Path specifies the path to your code. The default is /, which works for most projects.

Network Port

The Network Port is the port your app runs on. Your app must be configured to listen on this port. The default is 3000.

Run Command

Use the Run Command field to specify how to start your app. Leave this field empty to use the default command for the Capsule type, or enter a custom command:

• Python: python app.py
• Node.js: npm start

info

If using a Code Capsules Agent Template, the production ready command is npm run start:prod by default.

Set Agent Config

Click Edit in the Agent Config section to set the Capsule's provider, model, and API key.

Provider

The Provider specifies the public AI provider to use for the capsule. This will expose a PROVIDER_NAME environment variable in the runtime of the capsule. Among a few pre-defined options, there is also the ability to set a Custom provider name, which your altered codebase will need to cater for.

Model

The Model specifies the AI model to be used during the agent runtime. This will expose a PROVIDER_MODEL environment variable in the runtime of the capsule. Among a few pre-defined options per provider, there is also the ability to set a Custom model name, which your altered codebase will need to cater for.

API Key

The API Key specified the key as provided by the AI Provider. This is issued outside of Code Capsules but are necessary for the agent to work, and will expose a PROVIDER_API_KEY environment variable in the runtime of the capsule.

Set Environment Variables

Each Agent Capsule is automatically assigned an APP_URL environment variable that stores its public URL.

To view environment variable values, click show in the top-right corner of the table.

To add or edit custom variables:

1. Click Key/Val Editor or Text Editor in the top-right corner.
2. Enter or update the variable’s Name and Value.
3. Click Save to apply your changes.

Connect Data Capsules

Connect a Database Capsule

In the Data capsules section, click the View button next to a Database Capsule to see its connection details.

Click + next to the Connection string variable to create a DATABASE_URL environment variable in your Agent Capsule. Your application will use this variable to connect to and use the services provided by the Database Capsule.

Connect a Persistent Storage Capsule

Click Bind next to the Persistent Storage Capsule to attach it to your Agent Capsule.

During the bind process, Code Capsules creates a PERSISTENT_STORAGE_DIR environment variable that tells your Agent Capsule where to access the Persistent Storage Capsule.
